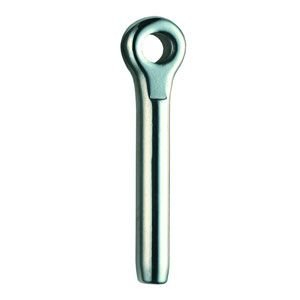

Stainless Steel Swage Eye

Stainless Steel Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Rigging

Shackles

Thimbles

Turnbuckles

Wire Rope Grips

Swage Terminals

Self-Assembly Terminals

CONTACT US FOR PRICING

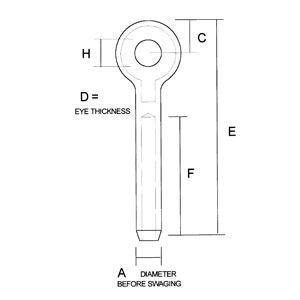

Dimensions and Weights

Part CodeWire
mm		A
mm		C
mm		D
mm		E
mm		F
mm		H
mm
SWR03903
3
6.2
6.4
6.0
60
39
6.4
SWR03904
4
7.4
8.0
7.0
72
45
8.1
SWR03905
5
9.0
9.5
8.0
75
52
9.6
SWR03906
6
12.4
11.1
9.5
102
64
11.2
SWR03907
7
14.2
12.7
11.0
113
70
12.8
SWR03908
8
16.1
12.7
11.7
128
80
14.5
SWR03910
10
17.7
15.9
15.0
155
110
16.1
SWR03912
12
21.4
22.5
19.0
189
120
19.5
SWR03914
14
25.0
25.5
22.0
216
140
22.5
SWR03916
16
28.2
31.7
24.0
250
160
25.4
SWR03919
19
34.5
36.5
28.0
296
190
28.6
SWR03922
22
40.3
39.7
32.0
350
242
32.0
SWR03926
26
45.8
42.9
34.0
410
290
35.0
