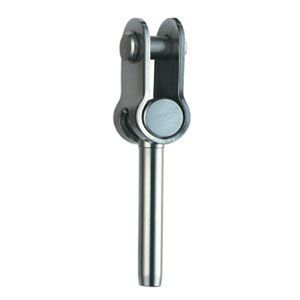

Stainless Steel Strap Toggle Swage

Stainless Steel Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Rigging

Shackles

Thimbles

Turnbuckles

Wire Rope Grips

Swage Terminals

Self-Assembly Terminals

CONTACT US FOR PRICING

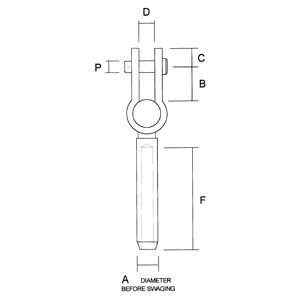

Dimensions and Weights

Part CodeWire
mm		A
mm		B
mm		C
mm		D
mm		F
mm		P
mm
SWR03803
3
6.2
15
9
6.4
39
6.4
SWR03804
4
7.4
19
10
8.4
45
7.9
SWR03805
5
9.0
21
11
9.9
51
9.5
SWR03806
6
12.4
25
15
11.5
61
11.1
SWR03807
7
14.2
28
16
13.1
70
12.7
SWR03808
8
16.1
28
16
13.1
80
12.7
SWR03810
10
17.7
33
20
16.3
100
16.0
SWR03812
12
21.4
34
25
19.1
120
18.5
SWR03814
14
25.0
40
32
22.2
140
21.5
