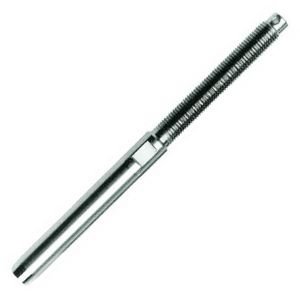

Stainless Steel Open Body Swage Stud - UNF

Stainless Steel Fittings

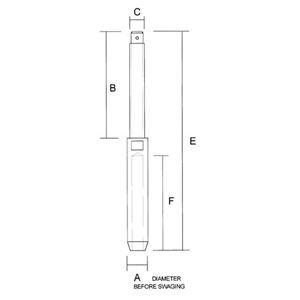

Part Code	Wire mm	A mm	B mm	E mm	F mm	UNF C
SWR05103	3	6.2	56	108	39	1/4
SWR05104	4	7.4	60	123	45	5/16
SWR051055/16	5	9.0	60	128	51	5/16
SWR05105	5	9.0	67	134	51	3/8
SWR051063/8	6	12.4	67	152	61	3/8
SWR05106	6	12.4	75	159	61	7/16
SWR051077/16	7	14.2	75	166	70	7/16
SWR05107	7	14.2	81	172	70	1/2
SWR051081/2	8	16.1	81	183	80	1/2
SWR051085/8	8	16.1	100	202	80	5/8
SWR05110	10	17.7	100	227	100	5/8
SWR05112	12	21.4	124	279	120	3/4
SWR05114	14	25.0	140	320	140	7/8
SWR05116	16	28.2	162	363	160	1
SWR05119	19	34.5	165	404	190	1 1/8
SWR05122	22	40.3	200	474	242	1 1/4
SWR05126	26	45.8	220	544	290	1 3/8
