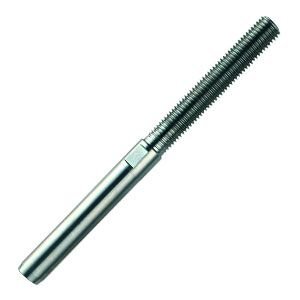

Stainless Steel Closed Body Swage Stud - Metric

Stainless Steel Fittings

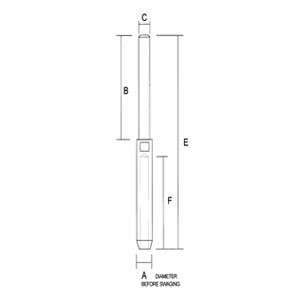

Part Code	Wire mm	A mm	B mm	E mm	F mm	Metric C
SWR06103M6	3	6.2	56	108	39	M6
SWR06104M6	4	7.4	56	119	45	M6
SWR06104M8	4	7.4	60	123	45	M8
SWR06105M8	5	9.0	60	128	51	M8
SWR06105M10	5	9.0	67	134	51	M10
SWR06106M10	6	12.4	67	152	61	M10
SWR06106M12	6	12.4	81	168	61	M12
SWR06107M12	7	14.2	81	172	70	M12
SWR06108M12	8	16.1	81	183	80	M12
SWR06108M16	8	16.1	100	202	80	M16
SWR06110M16	10	17.7	100	227	100	M16
SWR06112M20	12	21.4	124	279	120	M20
SWR06114M22	14	25.0	140	320	140	M22
SWR06116M24	16	28.2	162	363	160	M24
SWR06119M27	19	34.5	165	404	190	M27
SWR06122M30	22	40.3	200	474	242	M30
SWR06126M36	26	45.8	220	544	290	M36
