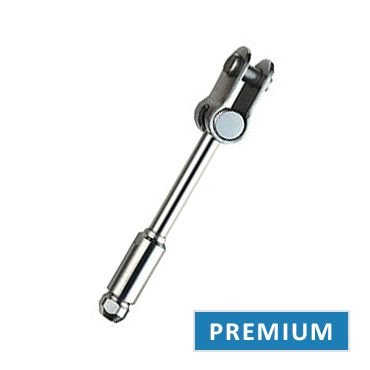

Stainless Steel Premium Self Assembly Toggle Fork - Long

Stainless Steel Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Rigging

Shackles

Thimbles

Turnbuckles

Wire Rope Grips

Swage Terminals

Self-Assembly Terminals

CONTACT US FOR PRICING

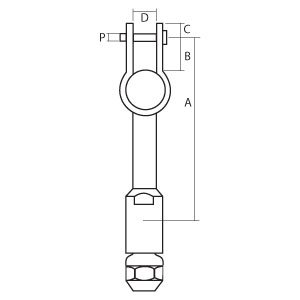

Dimensions and Weights

Part CodeWire
mm		A
mm		B
mm		C
mm		D
mm		P
mm
AWR07904
4
98.5
19
10
8.4
7.9
AWR07905
5
120.8
21
11
9.9
9.5
AWR079063/8
6
122.8
21
11
9.9
9.5
AWR07906
6
140.2
25
15
11.5
11.1
AWR07907
7
148.4
28
16
13.1
12.7
AWR07908
8
166.1
28
16
13.1
12.7
AWR07985/8
8
198.8
33
20
16.3
16.0
AWR07910
10
213.8
33
20
16.3
16.0
AWR079103/4
10
266.5
34
25
19.1
18.5
AWR07912
12
281.5
34
25
19.1
18.5
