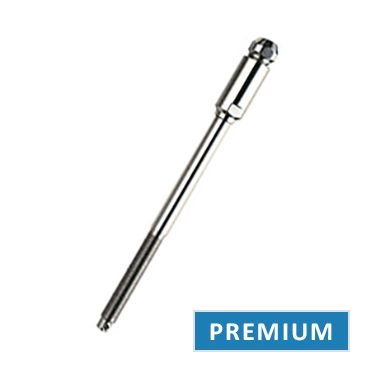

Stainless Steel Premium Self Assembly Stud - Long

Stainless Steel Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Rigging

Shackles

Thimbles

Turnbuckles

Wire Rope Grips

Swage Terminals

Self-Assembly Terminals

CONTACT US FOR PRICING

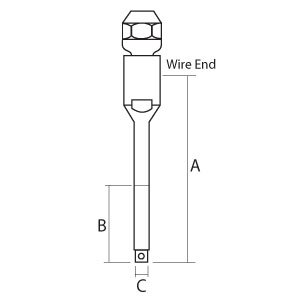

Dimensions and Weights

Part CodeWire
mm		A
mm		B
mm		C
inch
AWR07604
4
141
54
5/16
AWR076055/16
5
154
54
5/16
AWR07605
5
167
67
3/8
AWR076063/8
6
180
67
3/8
AWR07606
6
189
76
7/16
AWR07607
7
225
83
1/2
AWR07608
8
228
83
1/2
AWR076085/8
8
271
95
5/8
AWR07610
10
275
95
5/8
AWR07611
11
340
115
3/4
AWR07612
12
340
115
3/4

Metric Thread - Dimensions and Weights

Part CodeWire
mm		A
mm		B
mm		C
AWR07604M8
4
141
54
M8
AWR07605M8
5
154
54
M8
AWR07605M10
5
167
67
M10
AWR07606M10
6
180
67
M10
AWR07606M12
6
225
83
M12
AWR07607M12
7
225
83
M12
AWR07608M12
8
228
83
M12
AWR07608M16
8
271
95
M16
AWR07610M16
10
275
95
M16
AWR07611M20
11
340
115
M20
AWR07612M20
12
340
115
M20
