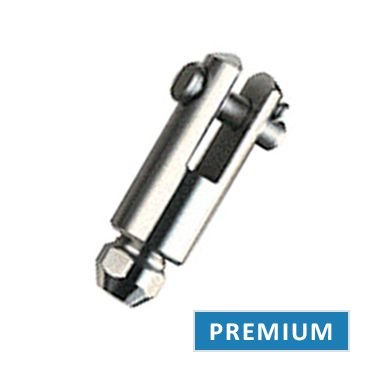

Stainless Steel Premium Self Assembly Fork

Stainless Steel Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Rigging

Shackles

Thimbles

Turnbuckles

Wire Rope Grips

Swage Terminals

Self-Assembly Terminals

CONTACT US FOR PRICING

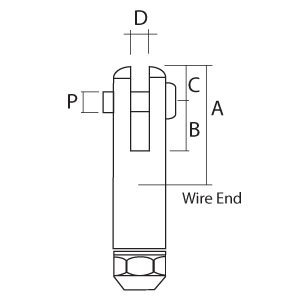

Dimensions and Weights

Part CodeWire
mm		A
mm		B
mm		C
mm		D
mm		P
mm
AWR03403
3
15.5
10.0
8.0
5.5
5.0
AWR03404
4
21.1
14.7
8.9
6.4
6.4
AWR03405
5
24.4
18.0
11.4
8.0
8.0
AWR03406
6
30.2
22.2
15.8
11.1
10.9
AWR03407
7
33.9
25.1
15.9
11.1
10.9
AWR03408
8
37.0
27.4
19.2
13.7
12.6
AWR03410
10
39.7
29.4
22.6
13.7
15.6
AWR03411
11
46.0
33.3
25.5
19.4
18.5
AWR03412
12
46.0
33.3
25.5
19.4
18.5
AWR03414
14
54.0
38.1
31.5
20.4
21.5
AWR03416
16
57.5
40.0
33.6
20.4
21.5
AWR03419
19
73.8
50.0
40.8
27.8
27.0
AWR03422
22
152.4
60.3
45.6
34.9
33.0
AWR03426
26
152.4
60.3
50.3
34.9
33.0
