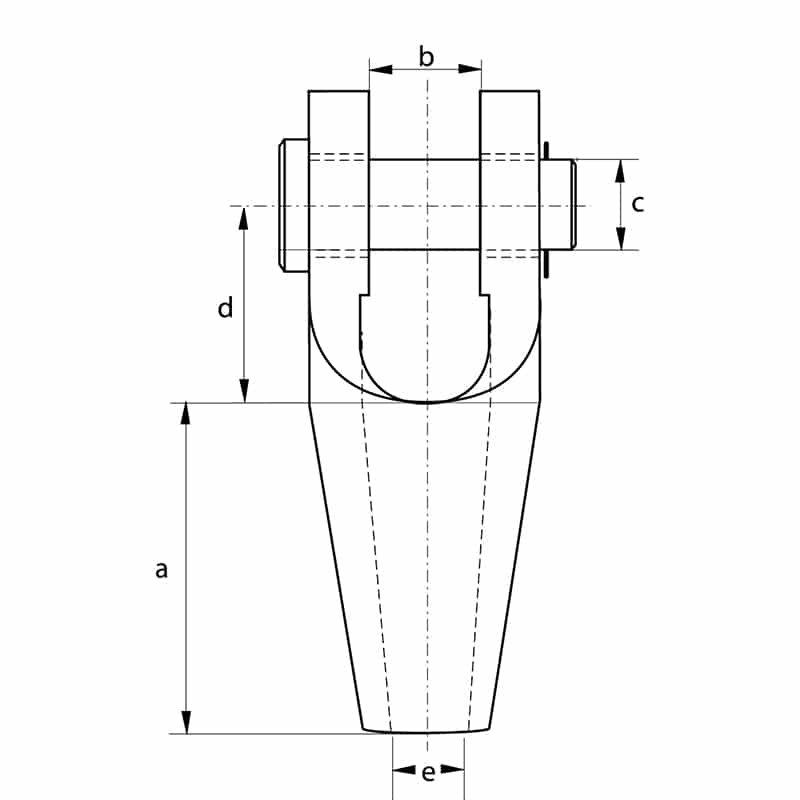

| Working Load Limit (tonnes) | Wire Rope (inch) | Dimensions (inch) | Part Code | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||
| 0.50 | 1/4 | 1 11/16 | 5/8 | 1/2 | 1 1/4 | 5/16 | SWROSS51001 | 0.34 |
| 0.75 | 5/16 | 1 11/16 | 5/8 | 1/2 | 1 1/4 | 3/8 | SWROSS51002 | 0.34 |
| 1.00 | 3/8 | 2 | 7/8 | 5/8 | 1 11/16 | 15/32 | SWROSS51003 | 0.57 |
| 1.25 | 7/16 | 2 | 7/8 | 5/8 | 1 11/16 | 17/32 | SWROSS51004 | 0.57 |
| 2.00 | 1/2 | 2 3/8 | 1 1/8 | 13/16 | 2 1/16 | 19/32 | SWROSS51005 | 0.80 |
| 2.25 | 9/16 | 2 3/8 | 1 1/8 | 13/16 | 2 1/16 | 21/32 | SWROSS51006 | 0.80 |
| 3.00 | 5/8 | 2 3/4 | 1 1/4 | 15/16 | 2 1/2 | 23/32 | SWROSS51007 | 1.14 |
| 4.25 | 3/4 | 3 | 1 1/2 | 1 1/8 | 2 5/8 | 27/32 | SWROSS51008 | 1.93 |
| 5.50 | 7/8 | 3 3/8 | 1 11/16 | 1 1/4 | 3 | 1 | SWROSS51009 | 2.73 |
| 7.50 | 1 | 4 1/8 | 1 7/8 | 1 1/2 | 3 1/2 | 1 1/8 | SWROSS51010 | 4.77 |
| 9.50 | 1 1/8 | 4 1/2 | 2 | 1 5/8 | 4 | 1 1/4 | SWROSS51011 | 6.82 |
| 11.50 | 1 1/4 | 5 1/4 | 2 1/8 | 1 7/8 | 4 3/8 | 1 3/8 | SWROSS51012 | 10.00 |
| 14.00 | 1 3/8 | 6 | 2 9/16 | 2 1/4 | 4 1/2 | 1 9/16 | SWROSS51013 | 15.23 |
| 16.50 | 1 1/2 | 6 | 2 9/16 | 2 1/4 | 4 1/2 | 1 11/16 | SWROSS51014 | 15.23 |
| 19.00 | 1 5/8 | 6 | 2 9/16 | 2 1/4 | 4 1/2 | 1 13/16 | SWROSS51015 | 15.23 |
| 25.00 | 2 | 7 11/16 | 3 1/8 | 2 3/4 | 6 1/2 | 2 13/16 | SWROSS51017 | 56.00 |
| 38.00 | 2 1/4 | 9 | 3 3/4 | 3 1/2 | 7 1/2 | 2 1/2 | SWROSS51018 | 64.00 |
