Green Pin Open Swage Sockets CP (S-6414) - Astro Wire Rope

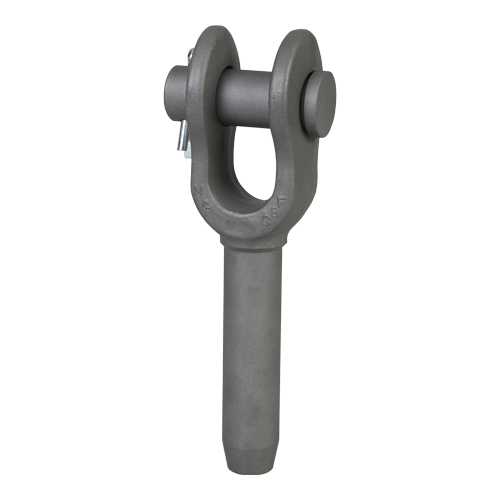

Green Pin Open Swage Sockets CP (S-6414)

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

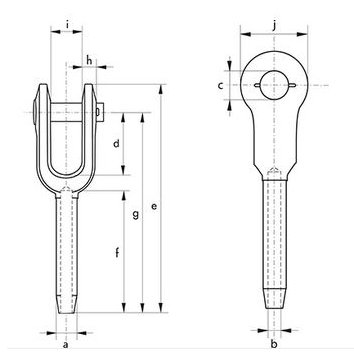

Dimensions and Weights

Rope Dia mm⌀	Weight kgs/Each	Before Swage Dimensions (mm)										After Swage (mm)⌀
Rope Dia mm⌀	Weight kgs/Each	A	B	C	D	E	F	G	H	I	J	Min	Max
6	0.25	10.9	7	17	38	121	54	102	8	17	35	11.7	13
8	0.58	17.2	9	21	44	159	81	135	10	21	41	18	20
10	0.57	17.2	10	21	44	159	81	135	10	21	41	18	20
11	1.12	22	12	25	51	198	108	169	13	25	51	23.1	25
13	1.09	22	14	25	51	198	108	169	13	25	51	23.1	25
14	2.24	28.3	15	30	57	243	135	206	16	32	63	29.5	32
16	2.09	28.3	17	30	57	243	135	206	16	32	63	29.5	32
19	3.62	34.7	20	35	70	297	162	254	19	38	76	36.1	39
22	5.43	37.8	24	41	83	346	189	295	23	44	86	39.4	43
25	8.34	44.2	27	51	95	397	216	340	26	51	102	45.7	50
28	12.2	50.5	30	57	108	444	243	381	30	57	114	52.1	57
32	16.3	56.9	34	64	121	494	270	419	30	63	127	58.4	64
35	20.7	63.2	37	64	133	540	297	460	33	63	133	65	71
38	29.5	69.6	40	70	146	591	324	502	37	76	146	71.4	78
44	42.2	75.9	47	89	171	689	378	584	43	89	178	77.7	86
