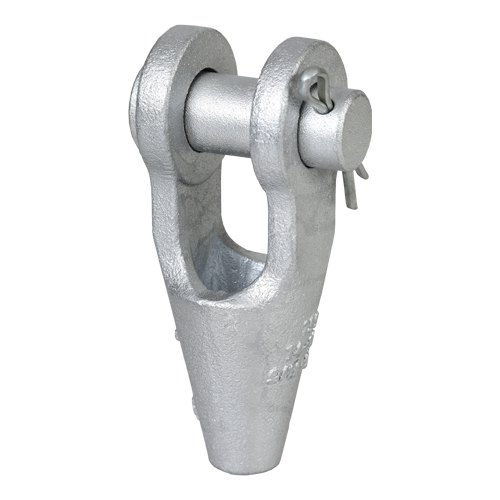

Green Pin Open Spelter Sockets (G6412)

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

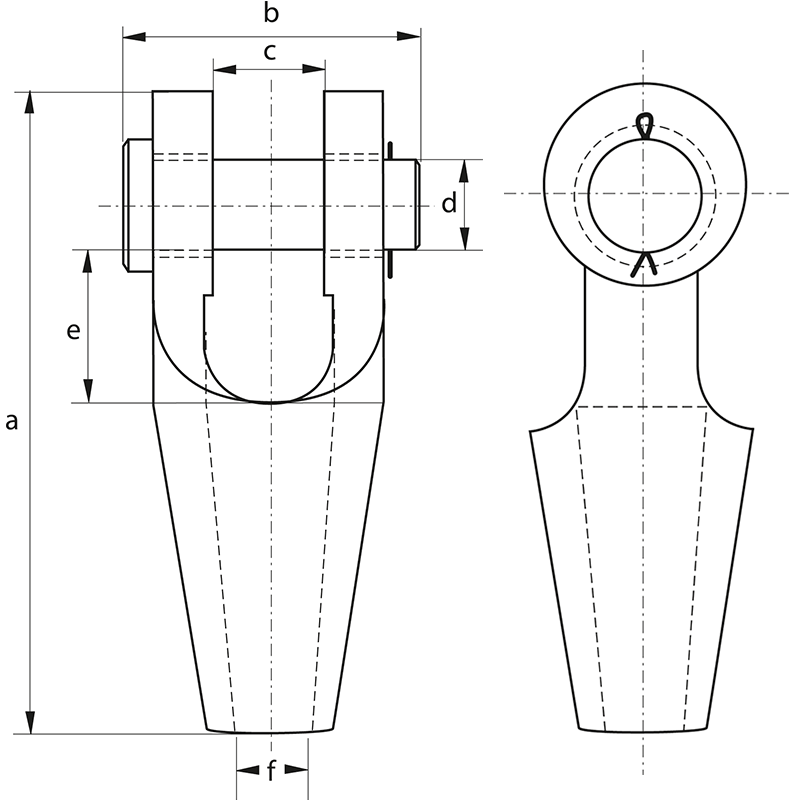

Dimensions and Weights

MBL (tonnes)	Wire Rope (mm)	Dimensions (mm)						Part Code	Weight kg
MBL (tonnes)	Wire Rope (mm)	A	B	C	D	E	F	Part Code	Weight kg
8	6 – 7	109	51	19	16	33	9		0.40
12	8 – 10	124	62	21	21	34	12		0.70
20	11 – 13	143	66	26	25	37	15		1.00
25	14 – 16	172	82	33	30	49	18		1.80
40	18-19	205	95	38	35	58	21		3.00
55	20 – 22	235	110	44	41	68	24		4.60
75	23-26	275	130	51	51	75	28		8.00
90	27-30	306	144	57	57	85	32		11
125	31-36	338	155	63	64	95	38		16
150	37-39	394	178	76	70	127	41		22
170	40-42	418	187	76	76	127	44		27
225	43-48	464	213	89	89	134	51		41
280	59-54	552	240	101	95	181	57		64
360	55-60	598	270	113	108	196	63		88
425	61-68	654	303	127	121	213	73		125
460	69-75	696	349	133	127	216	79		155
560	76-80	737	371	146	133	220	86		187
625	81-86	788	391	159	140	228	92		230
720	87-93	852	411	171	152	242	99		265
785	94-102	914	447	191	178	254	108		400
1200	108-115	1160	489	206	193	369	125		660
1300	120-130	1310	603	225	250	390	143		735
