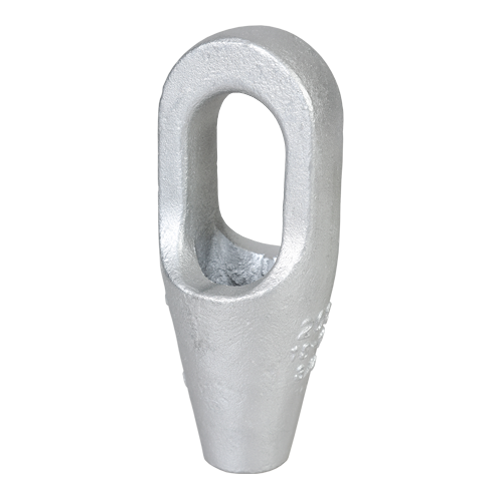

Green Pin Closed Spelter Sockets (G6411)

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

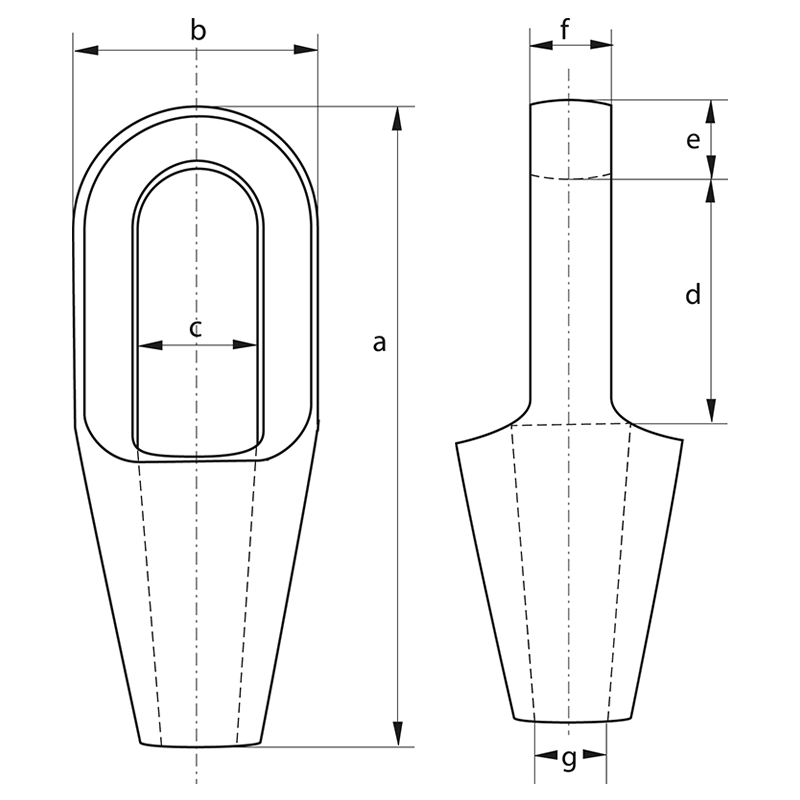

Dimensions and Weights

MBL tonnes	Wire Rope mm⌀	Dimensions mm							Part Code	Weight kg
MBL tonnes	Wire Rope mm⌀	A	B	C	D	E	F	G	Part Code	Weight kg
8	6-7	101	37	22	40	11	13	9	SWRCS53999	0.30
12	8-10	119	43	25	48	14	17.5	12	SWRCS54000	0.50
20	11-13	140	52	30	58	18	23.5	15	SWRCS54001	0.75
25	14-16	162	68	37	66	21	26	17.5	SWRCS54002	1.50
40	18-19	194	76	42	78	27	32	21.5	SWRCS54003	2.10
55	20-22	224	92	47	90	33	38	21	SWRCS54004	3.60
75	23-26	253	104	57	103	36	44	28	SWRCS54005	5.80
90	27-30	282	114	63	116	39	51	32	SWRCS54006	7.00
125	31-36	312	127	70	130	43	57	38	SWRCS54007	10.5
150	37-39	358	136	79	155	51	63	41	SWRCS54008	13
170	40-42	390	146	83	171	54	70	44	SWRCS54009	17
225	43-48	443	171	93	198	55	76	51	SWRCS54010	26
280	49-54	502	193	100	224	62	82	57	SWRCS54011	27.5
360	55-60	548	216	112	247	73	98	63	SWRCS54012	50
425	61-68	597	241	140	270	79	102	73	SWRCS54013	65
460	69-75	644	273	159	286	79	124	79	SWRCS54014	94
560	76-80	686	292	171	298	83	133	86	SWRCS54015	115
625	81-86	743	311	184	311	102	146	92	SWRCS54016	145
720	87-93	788	330	197	330	102	159	99	SWRCS54017	168
875	94-102	845	362	216	356	108	178	108	SWRCS54018	210
1200	108-115	1000	405	235	425	125	190	125	SWRCS54019	330
1300	120-130	1150	450	260	525	125	200	143	SWRCS54020	500
