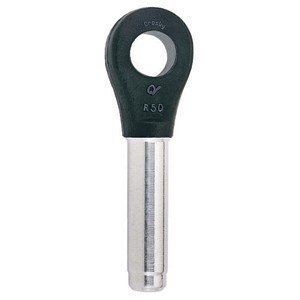

Closed Swage Sockets

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

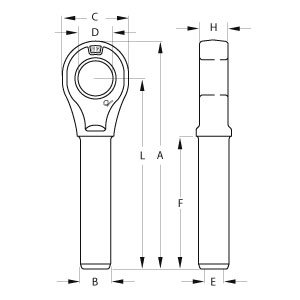

Dimensions and Weights

Part Code S-502	Wire Rope mm⌀	Weight kgs/Each	Before Swage Dimensions								Max After Swage mm⌀
Part Code S-502	Wire Rope mm⌀	Weight kgs/Each	A	B	C	D	E	F	H	L	Max After Swage mm⌀
1039325	6	0.15	109	12.7	35.1	19.1	6.85	54.0	12.7	89.0	11.7
1039343	8	0.34	138	19.6	41.1	22.4	6.85	81.0	17.0	114	18.0
1039361	9 – 10	0.33	138	19.6	41.1	22.4	10.4	81.0	17.0	114	18.0
1039389	11 – 12	0.64	176	24.9	51.0	26.9	12.2	108	21.8	146	23.1
1039405	13	0.64	176	24.9	51.0	26.9	14.0	108	21.8	146	23.1
1039423	14	1.32	220	31.8	60.5	31.8	15.5	135	28.7	184	29.5
1039441	16	1.29	220	31.8	60.5	31.8	17.0	135	28.7	184	29.5
1039469	18 – 20	2.27	261	39.4	73.0	36.6	20.3	162	33.3	219	36.1
1039487	22	3.08	303	43.2	79.0	42.9	23.9	189	38.1	257	39.4
1039502	24 – 26	4.72	344	50.5	92.0	52.5	26.9	216	44.5	292	45.7
1039520	28	6.72	382	57.0	102	58.5	30.2	243	51.0	324	52.0
1039548	32	9.78	430	64.5	114	65.0	33.8	270	57.0	365	85.5
1039566	34 – 36	12.9	473	71.0	127	65.0	36.8	297	57.0	400	65.0
1039584	38 – 40	17.3	511	78.0	140	71.5	40.1	324	63.5	432	71.5
1039600	44	23.1	598	86.0	159	90.5	47.2	378	76.0	508	77.5
1042589	48 – 52	40.5	702	100	184	96.5	53.5	432	82.5	584	90.5

Press / Die Data

Wire Rope mm⌀	Die Socket Inches	Part Code		Side Load
Wire Rope mm⌀	Die Socket Inches	500, 1000, 1500 Tonnes 5 x 7	1500, 3000 Tonnes 6 x 12	1500 Tonnes 6 x 12	3000 Tonnes 6 x 12
6	1/4	1192845	–	–	–
8	5/16-3/8	1192863	–	–	–
9 – 10	5/16-3/8	1192863	–	–	–
11 – 12	7/16-1/12	1192881	–	–	–
13	7/16-1/12	1192881	–	–	–
14	9/16-5/8	1192907	–	–	–
16	9/16-5/8	1192907	–	–	–
18 – 20	3/4	1192925	–	–	–
22	7/8	1192943	–	–	–
24 – 26	1	1192961	–	–	–
28	1 1/8	1192989	–	–	–
32	1 1/4	1199003	–	–	–
34 – 36	1 3/8	1193023	–	–	–
38 – 40	1 1/2	1193041	1191267	1195355	1195192
44	1 3/4	1193069	1191276	1195367	1195209
48 – 52	2	1193087	1191294	1195379	1195218
