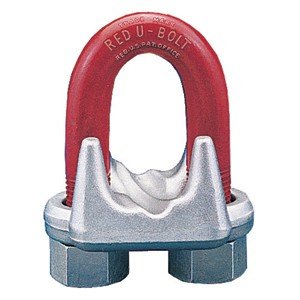

G450 - Forged Wire Rope Clips

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

CONTACT US FOR PRICING

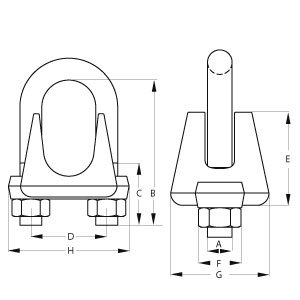

Dimensions and Weights

Rope size
[mm]		Part CodeStd. Pack
[Qty.]		Weight
kg/100		Dimensions [mm]
G450ABCDEFGH
3-4
1010015
100
2.72
5.60
18.3
11.2
11.9
10.4
9.65
20.6
23.9
5
1010033
100
4.54
6.35
24.6
14.2
15.0
12.7
11.2
23.9
29.5
6-7
1010051
100
8.62
7.85
26.2
12.7
19.1
16.8
14.2
30.2
36.6
8
1010079
100
12.7
9.65
35.1
19.1
22.4
18.3
17.5
33.3
42.9
9-10
1010097
100
21.8
11.2
38.1
19.1
25.4
23.1
19.1
41.4
49.3
11
1010113
50
35.4
12.7
47.8
25.4
30.2
26.2
22.4
46.0
58.0
12-13
1010131
50
36.3
12.7
47.8
25.4
30.2
28.7
22.4
48.5
58.0
14-15
1010159
50
49.4
14.2
57.0
31.8
33.3
31.0
23.9
52.5
63.5
16
1010177
50
49.9
14.2
60.5
31.8
33.3
34.0
23.9
52.5
63.5
18-20
1010195
25
64
15.7
70.0
36.6
38.1
35.8
26.9
57.0
72.0
22
1010211
25
96
19.1
9.0
41.1
44.5
40.4
31.8
62.0
80.5
24-26
1010239
10
114
19.1
89.0
46.0
47.8
45.2
31.8
67.0
88.0
28-30
1010257
10
128
19.1
98.5
51.0
51.0
48.5
31.8
71.5
91.0
32-34
1010275
10
199
22.4
108
54.0
58.5
55.5
36.6
79.5
105
36
1010293
10
200
22.4
118
58.5
60.5
58.5
36.6
79.5
106
38
1010319
10
247
22.4
125
60.5
66.5
62.0
36.6
86.5
113
41-42
1010337
Bulk
319
25.4
135
66.5
70.0
67.5
41.4
92.0
121
44-46
1010355
Bulk
424
28.7
146
70.0
77.5
74.5
46.0
97.0
134
48-52
1010373
Bulk
590
31.8
164
76.0
86.0
83.5
51.0
113
149
56-58
1010391
Bulk
726
31.8
181
81.0
98.5
81.0
51.0
114
162
62-65
1010417
Bulk
862
31.8
195
87.5
105
93.5
51.0
103
168
68-72
1010435
Bulk
1043
31.8
211
90.5
111
124
51.0
127
175
75-78
1010453
Bulk
1406
38.1
233
98.5
121
119
60.5
149
194
85-90
1010426
Bulk
1814
38.1
273
114
140
152
60.5
157
213
