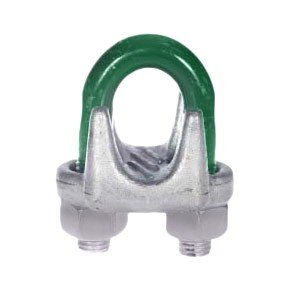

EN-13411-5 Drop Forged Wire Rope Grips

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

CONTACT US FOR PRICING

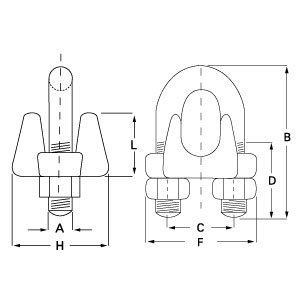

Dimensions and Weights

Dia.
mm		A
mm		B
mm		C
mm		D
mm		F
mm		H
mm		L
mm		Weight
Kgs/100		Part Code
1/4
8
34
19
13
37
30
17
8
WRE0301
5/16
10
45
22
19
43
33
18
14
WRE0302
3/8
11
49
26
19
49
42
25
19
WRE0303
1/2
13
61
30
26
58
48
27
34
WRE0305
5/8
16
74
33
32
64
52
33
45
WRE0307
3/4
14
86
38
37
72
57
37
68
WRE0308
7/8
19
98
45
40
80
62
40
108
WRE0309
1
19
108
48
46
88
67
44
113
WRE0310
1 1/8
19
117
51
51
91
72
48
140
WRE0311
1 1/4
22
130
59
54
105
79
56
207
WRE0312
1 3/8
22
140
60
59
108
79
58
234
WRE0313
1 1/2
22
147
66
60
112
86
64
266
WRE0314
1 3/4
29
175
78
74
134
97
78
441
WRE0316
2
32
195
86
78
152
113
87
603
WRE0318
2 1/4
32
208
98
81
162
116
100
707
WRE0319
2 1/2
32
227
105
87
168
119
113
806
WRE0320
2 3/4
32
243
112
91
174
127
124
1000
WRE0321
3
38
271
121
104
194
135
136
1440
WRE0322
