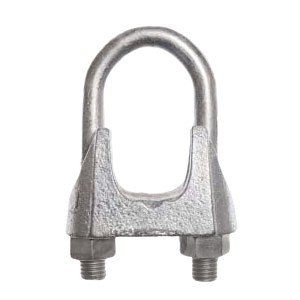

DIN-741 Galvanised Wire Rope Grips (without grooves)

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

CONTACT US FOR PRICING

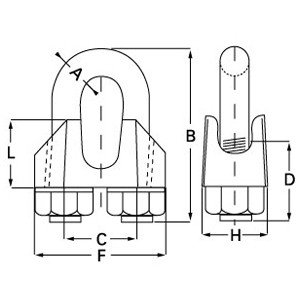

Dimensions and Weights

Dia.
mm		A
mm		B
mm		C
mm		D
mm		F
mm		H
mm		L
mm		Weight
Kgs/100		Part Code
3
4
20
9
12
21
10
10
1.4
WRE0601
5
5
24
11
13
23
11
10
1.5
WRE0602
6.5
5
28
13
15
26
12
11
2.1
WRE0603
8
6
34
16
19
30
14
15
4.1
WRE0604
10
8
42
19
22
34
18
17
6.8
WRE0605
13
10
55
24
30
42
23
21
11.0
WRE0606
16
12
63
29
33
50
26
26
21.0
WRE0607
19
12
75
32
38
54
29
30
28.0
WRE0608
22
14
85
37
44
61
33
34
40.0
WRE0609
26
14
95
41
45
65
35
37
44.0
WRE0610
30
16
110
48
50
74
37
43
60.0
WRE0611
34
16
120
52
55
80
42
50
85.0
WRE0612
40
16
140
58
60
88
45
55
104.0
WRE0613
