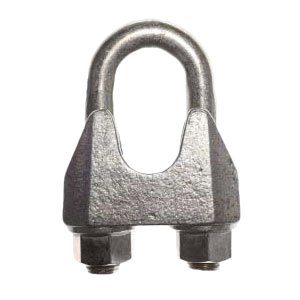

DIN-1142 Galvanised Wire Rope Grips

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

CONTACT US FOR PRICING

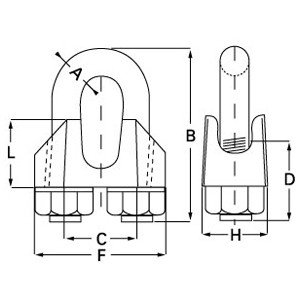

Dimensions and Weights

Dia.
mm		A
mm		B
mm		C
mm		D
mm		F
mm		H
mm		L
mm		Weight
Kgs/100		Part Code
5
5
25
12
13
25
13
13
2.1
WRE0701
6.5
6
32
14
17
30
16
14
4
WRE0702
8
8
41
18
20
39
20
18
8.2
WRE0703
10
8
46
20
24
40
20
21
9.2
WRE0704
12
10
56
24
28
50
24
25
25
WRE0713
13
12
64
27
30
55
28
29
27.5
WRE0705
14
12
66
28
31
59
28
30
35
WRE0714
16
14
76
32
35
64
32
35
43
WRE0706
19
14
83
36
36
68
32
40
49
WRE0707
22
16
96
40
40
74
34
44
68
WRE0708
26
20
111
46
50
84
38
51
117
WRE0709
30
20
127
54
55
95
41
59
140
WRE0710
34
22
141
60
60
105
45
67
213
WRE0711
40
24
159
68
65
117
49
77
268
WRE0712
