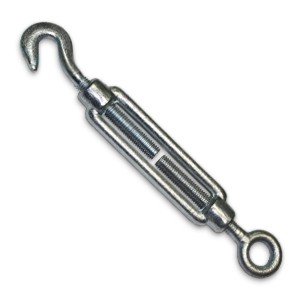

Hook and Eye DIN1480 Strainers

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

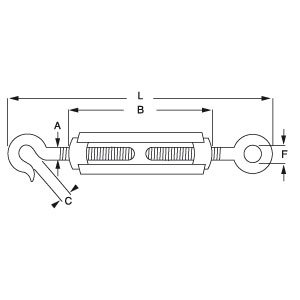

Dimensions and Weights

A mm	B mm	C mm	D mm	E mm	F mm	H mm	J mm	K mm	Weight kgs/100	Part Code
6	172	258	110	77	80	8	20	9	0.11	WRSTHE006
8	184	264	110	85	84	10.5	22	10	0.20	WRSTHE008
10	222	311	125	106	105	13	31	14	0.28	WRSTHE010
12	241	324	125	117	111	16	35	16	0.43	WRSTHE012
16	311	427	170	144	150	20	47	22	1.00	WRSTHE016
20	358	490	200	170	167	21	52	24	1.60	WRSTHE020
24	453	630	255	215	205	26	65	27	2.80	WRSTHE024
