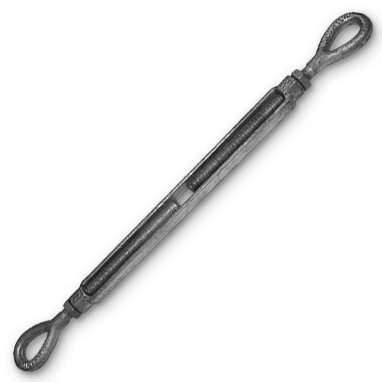

Eye and Eye - Tested Turnbuckles

Galvanised Fittings

These turnbuckles meet the performance requirements of US Fed FFT-791 & ASTM F1145-92. All turnbuckles are supplied with lock nuts as standard.

For more information please contact a member of our sales team.

Dia. Thread Inch Ø	Take-up Inch	WLL Tonnes	Part Code
3/8	6	0.54	WRW0601
1/2	6	1.00	WRW0602
	9	1.00	WRW0603
	12	1.00	WRW0604
5/8	6	1.59	WRW0605
	9	1.59	WRW0606
	12	1.59	WRW0607
3/4	6	2.36	WRW0608
	9	2.36	WRW0609
	12	2.36	WRW0610
	18	2.36	WRW0611
7/8	12	3.27	WRW0612
7/8	18	3.27	WRW0613
1	6	4.54	WRW0614
	12	4.54	WRW0615
	18	4.54	WRW0616
	24	4.54	WRW0617
1 1/4	12	6.90	WRW0618
	18	6.90	WRW0619
	24	6.90	WRW0620
1 1/2	12	9.71	WRW0621
	18	9.71	WRW0622
	24	9.71	WRW0623
1 3/4	18	12.7	WRW0624
1 3/4	24	12.7	WRW0625
2	24	16.78	WRW0626
2 1/2	24	27.22	WRW0627

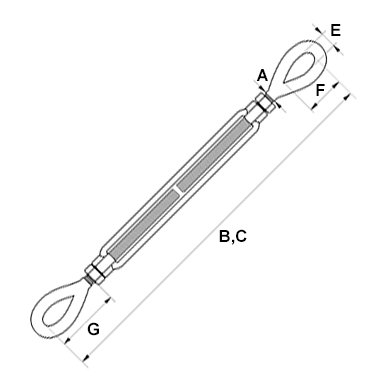

Dia. Thread Inch Ø	Take-up Inch	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	Part Code
3/8	6	302	454	9	13	28	65	WRW0601
1/2	6	338	490	12	18	36	80	WRW0602
	9	414	642	12	18	36	80	WRW0603
	12	490	795	12	18	36	80	WRW0604
5/8	6	394	546	14	21	43	98	WRW0605
	9	470	698	14	21	43	98	WRW0606
	12	546	851	14	21	43	98	WRW0607
3/4	6	432	584	17	25	53	113	WRW0608
	9	508	736	17	25	53	113	WRW0609
	12	584	889	17	25	53	113	WRW0610
	18	737	1194	17	25	53	113	WRW0611
7/8	12	625	854	20	31	59	118	WRW0612
7/8	18	778	1121	20	31	59	118	WRW0613
1	6	524	676	22	36	74	155	WRW0614
	12	676	981	22	36	74	155	WRW0615
	18	829	1286	22	36	74	155	WRW0616
	24	980	1592	22	36	74	155	WRW0617
1 1/4	12	760	1055	29	45	88	197	WRW0618
	18	912	1370	29	45	88	197	WRW0619
	24	1064	1665	29	45	88	197	WRW0620
1 1/2	12	823	1129	32	54	105	215	WRW0621
	18	975	1434	32	54	105	215	WRW0622
	24	1128	1738	32	54	105	215	WRW0623
1 3/4	18	1060	1533	38	60	119	254	WRW0624
1 3/4	24	1213	1838	38	69	119	254	WRW0625
2	24	1315	2011	45	69	146	308	WRW0626
2 1/2	24	1486	2098	51	79	165	344	WRW0627
