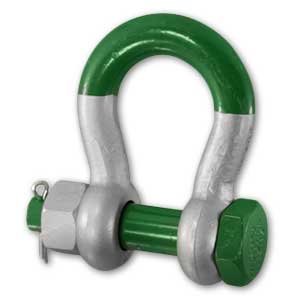

Green Pin® Super Bow Shackles G-5263 Safety Pin Type

Galvanised Fittings

Product Details

Material: Body and pin alloy steel, Grade 8, quenched and tempered

Safety Factor: MBL equals 5 x WLL

Finish: Hot dipped galvanised (175 ton shackle is painted)

Standard: Meets performance requirements of US Fed Spec RR-C-271, Type IVA Class 3, Grade B

Certificate: As standard an EC declaration of conformity is supplied, also upon request a basic raw material cert, manufacturer test cert. All shackles starting from 150 tons are supplied with a Lloyd’s Register of Shipping certificate on proof load.

Dimensions and Weights

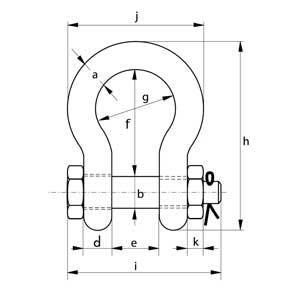

WLL	Product Code	Bow Dia	Pin Dia	Eye Dia	Width Eye	Width Inside
Tonns	–	a mm	b mm	c mm	d mm	e mm
3.3	WRA0762	13.5	16	34	13	22
5	WRA0763	16	19	40	16	27
7	WRA0764	19	22	46	19	31
9.5	WRA0765	22	25	52	22	36
12.5	WRA0766	25	28	59	25	43
15	WRA0767	28	32	66	28	47
18	WRA0768	32	35	72	32	51
21	WRA0769	35	38	80	35	57
30	WRA0755	38	42	88	38	60
40	WRA0756	45	50	103	45	74
55	WRA0751	57	57	117	57	83
85	WRA0752	70	70	143	70	105
120	WRA0753	83	83	162	83	127
150*	WRA0754	95	95	208	91	147
175*	WRA0761	105	108	238	102	169

WLL	Product Code	Length Inside	Width Bow	Length	Width Nut	Weight Each
Tonns	–	f mm	g mm	h mm	k mm	kg
3.3	WRA0762	51	32	89	13	0.44
5	WRA0763	64	43	110	17	0.79
7	WRA0764	76	51	129	19	1.26
9.5	WRA0765	83	58	144	22	1.88
12.5	WRA0766	95	68	164	25	2.78
15	WRA0767	108	75	185	27	3.87
18	WRA0768	115	83	201	30	5.26
21	WRA0769	133	92	227	33	6.94
30	WRA0755	146	99	249	19	8.79
40	WRA0756	178	126	300	23	15
55	WRA0751	197	138	341	26	22.7
85	WRA0752	260	180	437	32	43.2
120	WRA0753	329	190	535	40	70.5
150*	WRA0754	400	238	647	50	110
175*	WRA0761	410	275	688	60	160
