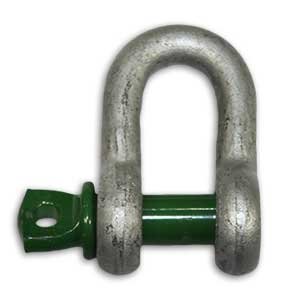

Green Pin® Standard Dee Shackles G-4151 Screw Pin Type

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

Product Details

Material: Body and pin high tensile steel, Grade 6, quenched and tempered

Safety Factor: MBL equals 6 x WLL

Finish: Hot-dipped galvanised

Temp Range: Minus 20°c up to 200°c

Standard: EN 13889 and meets performance requirements of US Fed Spec RR-C-271, Type IVA Class 2, Grade A

Certificate: As standard an EC declaration of conformity is supplied, also upon request a basic raw material cert, manufacturer test cert, inspection cert and DNV cert (2t above)

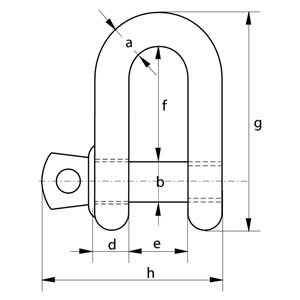

Dimensions and Weights

WLL	Product Code	Bow Dia	Pin Dia	Eye Dia	Width Eye
Tonns	–	a mm	b mm	c mm	d mm
0.33	–	5	6	12	5
0.5	WRA0202	7	8	16.5	7
0.75	WRA0203	9	10	20	9
1	WRA0204	10	11	22.5	10
1.5	WRA0205	11	13	26.5	11
2	WRA0206	13.5	16	34	13
3.25	WRA0207	16	19	40	16
4.75	WRA0208	19	22	46	19
6.5	WRA0209	22	25	52	22
8.5	WRA0210	25	28	59	25
9.5	WRA0211	28	32	66	28
12	WRA0212	32	35	72	32
13.5	WRA0213	35	38	80	35
17	WRA0214	38	42	88	38
25	WRA0215	45	50	103	45
35	WRA0216	50	57	111	50
42.5	–	57	65	130	57
55	WRA0217	65	70	145	65

WLL	Product Code	Width Inside	Length Inside	Length	Length Bolt	Weight Each
Tonns	–	e mm	f mm	g mm	h mm	kg
0.33	–	9.5	19	33	29.5	0.02
0.5	WRA0202	12	22	41.5	38	0.05
0.75	WRA0203	13.5	26	50	46.5	0.09
1	WRA0204	17	32	59	54	0.14
1.5	WRA0205	19	37	68	59.5	0.19
2	WRA0206	22	43	81	73	0.32
3.25	WRA0207	27	51	97	89	0.54
4.75	WRA0208	31	59	112	103	0.87
6.5	WRA0209	36	73	134	119	1.34
8.5	WRA0210	43	85	154	137	2.08
9.5	WRA0211	47	90	167	153	2.77
12	WRA0212	51	94	180	170	3.72
13.5	WRA0213	57	115	209	186	5.14
17	WRA0214	60	127	230	203	6.85
25	WRA0215	74	149	271	243	11.45
35	WRA0216	83	171	305	272	16.86
42.5	–	95	190	345	310	24.61
55	WRA0217	105	203	376	344	32.65
