Green Pin® Standard Bow Shackles G-4161 Screw Pin Type - Astro Wire Rope

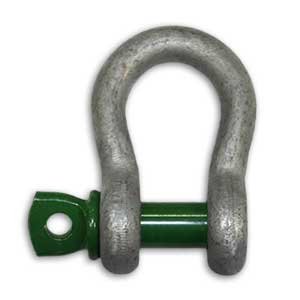

Green Pin® Standard Bow Shackles G-4161 Screw Pin Type

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

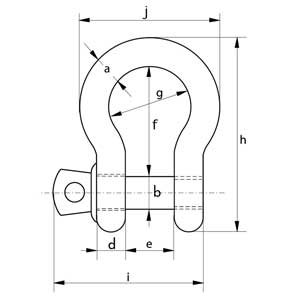

Dimensions and Weights

WLL	Product Code	Bow Dia	Pin Dia	Eye Dia	Width Eye	Width Inside
Tonns	–	a mm	b mm	c mm	d mm	e mm
0.33	WRA0101	5	6	12	5	9.5
0.5	WRA0102	7	8	16.5	7	12
0.75	WRA0103	9	10	20	9	13.5
1	WRA0104	10	11	22.5	10	17
1.5	WRA0105	11	13	26.5	11	19
2	WRA0106	13.5	16	34	13	22
3.25	WRA0107	16	19	40	16	27
4.75	WRA0108	19	22	46	19	31
6.5	WRA0109	22	25	52	22	36
8.5	WRA0110	25	28	59	25	43
9.5	WRA0111	28	32	66	28	47
12	WRA0112	32	35	72	32	51
13.5	WRA0113	35	38	80	35	57
17	WRA0114	38	42	88	38	60
25	WRA0115	45	50	103	45	74
35	WRA0116	50	57	111	50	83
42.5	–	57	65	130	57	95
55	WRA0117	65	70	145	65	105

WLL	Product Code	Bow Dia	Pin Dia	Eye Dia	Width Eye	Width Inside
Tonns	–	a mm	b mm	c mm	d mm	e mm
0.33	WRA0101	5	6	12	5	9.5
0.5	WRA0102	7	8	16.5	7	12
0.75	WRA0103	9	10	20	9	13.5
1	WRA0104	10	11	22.5	10	17
1.5	WRA0105	11	13	26.5	11	19
2	WRA0106	13.5	16	34	13	22
3.25	WRA0107	16	19	40	16	27
4.75	WRA0108	19	22	46	19	31
6.5	WRA0109	22	25	52	22	36
8.5	WRA0110	25	28	59	25	43
9.5	WRA0111	28	32	66	28	47
12	WRA0112	32	35	72	32	51
13.5	WRA0113	35	38	80	35	57
17	WRA0114	38	42	88	38	60
25	WRA0115	45	50	103	45	74
35	WRA0116	50	57	111	50	83
42.5	–	57	65	130	57	95
55	WRA0117	65	70	145	65	105
