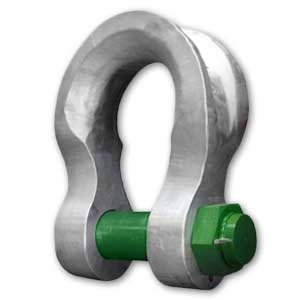

Green Pin® Sling Bow Shackles P-6033 Safety Pin Type

Galvanised Fittings

Product Details

Material: Body and pin high tensile steel, Grade 8, quenched and tempered

Safety Factor: MBL equals 5 x WLL

Finish: Bow painted silver, pin painted green

Temp Range: Minus 20°c up to 200°c

Notes: Plus 5% forging tolerance on inside width and length

Certificate: As standard an EC declaration of conformity is supplied, also upon request a basic raw material cert, manufacturer test cert and works cert. All shackles are supplied with a Lloyd’s Register of Shipping Certificate on proof load, an MPI certificate and/or US inspection certificate can be supplied on request.

Dimensions and Weights

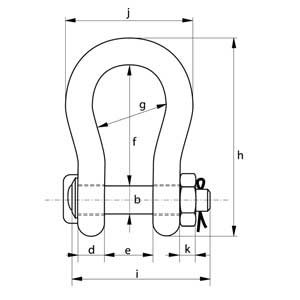

WLL	Product Code	Dia Body	Pin Dia	Eye Dia	Width Eye	Width Inside
Tonns	–	a mm	b mm	c mm	d mm	e mm
7	–	22	22	46	19	32
12.5	–	28	28	61	25	44
18	–	35	35	69	30	52
30	–	40	42	90	35	69
40	–	55	51	109	45	84
55	–	60	57	115	55	90
75	–	68	70	125	54	110
125	–	85	80	154	85	137
150	–	94	95	179	89	147
200	–	110	105	199	100	158
250	–	126	120	227	110	179
300	–	135	134	245	122	195
400	–	160	160	293	145	231
500	–	170	180	328	160	263
600	–	190	200	348	170	289
700	–	200	215	392	190	315
800	–	218	230	420	200	342
900	–	242	55	466	220	368
1000	–	260	270	490	240	399
1250	–	285	300	510	260	452
1500	–	295	320	550	280	483

WLL	Product Code	Length Inside	Width Bow	Length	Width Nut	Weight Each
Tonns	–	f mm	g mm	h mm	k mm	kg
7	–	96	64	153	19	2
12.5	–	121	82	197	24	4
18	–	147	102	239	29	7
30	–	165	126	279	34	13
40	–	199	140	331	38	21
55	–	240	160	389	45	30
75	–	290	185	473	54	48
125	–	366	220	583	64	92
150	–	391	253	645	50	140
200	–	481	280	759	50	205
250	–	542	300	859	60	254
300	–	601	350	947	70	360
400	–	576	370	985	80	580
500	–	681	450	1131	90	780
600	–	741	490	1234	100	980
700	–	751	540	1284	100	1360
800	–	851	554	1426	110	1430
900	–	851	580	1488	120	1650
1000	–	851	614	1532	120	2120
1250	–	931	650	1666	150	2400
1500	–	951	680	1710	150	2980
