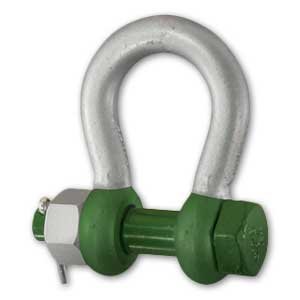

Green Pin® Polar Bow Shackles G-5163 Safety Pin Type

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

Product Details

Material: Body and pin alloy steel, Grade 8, quenched and tempered

Safety Factor: MBL equals 8 x WLL (WLL 55 & 85 ton, MBL equals 6)

Finish: Hot-dipped galvanised

Temp Range: Minus 40°c up to 200°c

Standard: EN 13889 and meets performance requirements of US Fed Spec RR-C-271, Type IVA Class 3, Class B

Certificate: As standard an EC declaration of conformity is supplied, also upon request a basic raw material cert, manufacturer test cert and works cert.

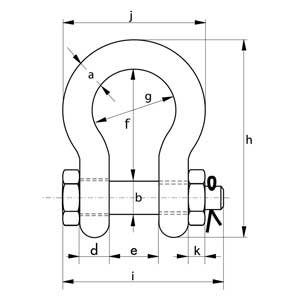

Dimensions and Weights

WLL	Product Code	Bow Dia	Pin Dia	Eye Dia	Width Eye	Width Inside
Tonns	–	a mm	b mm	c mm	d mm	e mm
2	–	13.5	16	34	13	22
3.25	WRA0607	16	19	40	16	27
4.75	WRA0608	19	22	46	19	31
6.5	WRA0609	22	25	52	22	36
8.5	WRA0610	25	28	59	25	43
9.5	WRA0611	28	32	66	28	47
12	WRA0612	32	35	72	32	51
13.5	WRA0613	35	38	80	35	57
17	WRA0614	38	42	88	38	60
25	WRA0615	45	50	103	45	74
35	WRA0616	50	57	116	50	83
42.5	–	57	65	130	57	95
55	WRA0617	65	70	145	65	105
85	WRA0618	75	83	162	73	127

WLL	Product Code	Length Inside	Width Bow	Length	Width Nut	Weight Each
Tonns	–	f mm	g mm	h mm	k mm	kg
2	–	51	32	91	13	0.42
3.25	WRA0607	64	43	114	17	0.74
4.75	WRA0608	76	51	136	19	1.18
6.5	WRA0603	83	58	157	22	1.77
8.5	WRA0610	95	68	176	25	2.58
9.5	WRA0611	108	75	197	27	3.66
12	WRA0612	115	83	218	30	4.91
13.5	WRA0613	133	92	240	33	6.54
17	WRA0614	146	99	262	19	8.19
25	WRA0615	178	126	314	23	14.22
35	WRA0616	197	138	358	26	19.85
42.5	–	222	160	414	29	28.33
55	WRA0617	260	180	463	32	39.59
85	WRA0618	329	190	556	40	62
