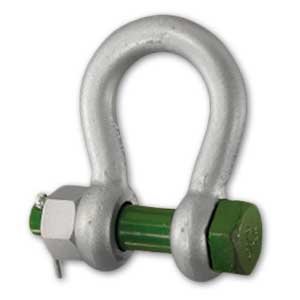

Green Pin® Heavy Duty Bow Shackles P-6036 Safety Pin Type

Galvanised Fittings

Product Details

Material: Body and pin alloy steel, Grade 8, quenched and tempered

Safety Factor: MBL equals 5 x WLL

Finish: Bow painted silver, pin painted green (120 ton shackle is hot dipped galvanised)

Notes: Plus 5% forging tolerance on inside width and length

Certificate: As standard an EC declaration of conformity is supplied, also upon request a basic raw material cert, manufacturer test cert. All shackles starting from 150 tons are supplied with a Lloyd’s Register of Shipping certificate on proof load.

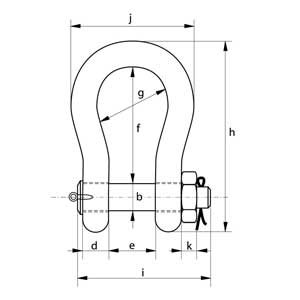

Dimensions and Weights

WLL	Product Code	Bow Dia	Pin Dia	Eye Dia	Width Eye	Width Inside
Tonns	–	a mm	b mm	c mm	d mm	e mm
120	WRA0319	95	95	208	91	147
150	WRA0320	105	108	238	102	169
200	WRA0321	120	130	279	113	179
250	WRA0322	130	140	299	118	205
300	WRA0323	140	150	325	123	205
400	WRA0324	170	175	376	164	231
500	–	180	185	398	164	256
600	–	200	205	444	189	282
700	–	210	215	454	204	308
800	–	210	220	464	204	308
900	–	220	230	485	215	328
1000	–	240	240	515	215	349
1250	–	260	270	585	230	369
1500	–	280	290	625	230	369

WLL	Product Code	Length Inside	Width Bow	Length	Width Nut	Weight Each
Tonns	–	f mm	g mm	h mm	k mm	kg
120	WRA0319	400	238	667	50	110
150	WRA0320	410	275	688	60	160
200	WRA0321	513	290	838	60	235
250	WRA0322	554	305	904	65	285
300	WRA0323	618	305	996	70	340
400	WRA0324	668	325	1114	70	560
500	–	718	350	1190	70	685
600	–	718	375	1243	70	880
700	–	718	400	1263	70	980
800	–	718	400	1270	70	1100
900	–	718	420	1296	70	1280
1000	–	718	420	1336	70	1460
1250	–	768	450	1456	70	1990
1500	–	818	450	1556	70	2400
