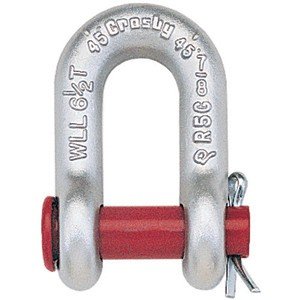

G2150 - Bolt Type Chain Shackles - Astro Wire Rope

G2150 - Bolt Type Chain Shackles

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

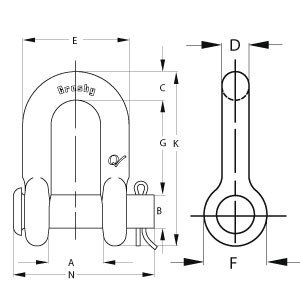

Dimensions and Weights

Norminal Size [Inches]	Dimensions [mm]									Tolerance +/-
Norminal Size [Inches]	A	B	D	F	G	K	M	P	R	G	A
1/4	11.9	7.85	6.35	15.5	19.1	40.4	24.6	39.6	6.35	1.50	1.50
5/16	13.5	9.65	7.85	19.1	25.4	48.5	29.5	46.2	7.85	1.50	1.50
3/8	16.8	12.2	9.65	23.1	31.0	58.5	35.8	55.0	9.65	3.30	1.50
7/16	19.1	12.7	11.2	26.9	36.1	67.5	41.1	63.5	11.2	3.30	1.50
1/2	20.6	16.	12.7	30.2	41.4	77.0	46.0	71.0	12.7	3.30	1.50
5/8	26.9	19.1	16.0	38.1	51.0	95.5	58.5	89.5	16.0	3.30	1.50
3/4	31.8	22.4	19.1	46.0	60.5	115	70.0	103	20.6	6.35	1.50
7/8	36.6	25.4	22.4	53.0	71.5	135	81.0	120	24.6	6.35	1.50
1	42.9	28.7	25.4	60.5	81.0	151	93.5	135	25.4	6.35	1.50
1 1/8	46.0	31.8	28.7	68.5	91.0	172	103	150	31.8	6.35	1.50
1 1/4	51.5	35.1	31.8	76.0	100	191	115	165	35.1	6.35	1.50
1 3/8	57.0	38.1	35.1	84.0	111	210	127	183	38.1	6.35	3.30
1 1/2	60.5	41.4	38.1	92.0	122	230	137	196	41.1	6.35	3.30
1 3/4	73.0	51.0	44.5	106	146	279	162	230	54.0	6.35	3.30
2	82.5	57.0	51.0	122	172	312	184	264	60.0	6.35	3.30
2 1/2	105	70.0	66.5	145	203	377	238	344	66.5	6.35	6.35
3	127	82.5	76.0	165	216	429	279	419	89.0	6.35	6.35

Norminal Size [Inches]	Working Load Limit [Tonnes]	Stock No.		Weight [kgs]
Norminal Size [Inches]	Working Load Limit [Tonnes]	G2150	S2150	Weight [kgs]
1/4	1/2	1019768	–	0.06
5/16	3/4	1019770	–	0.10
3/8	1	1019772	–	0.15
7/16	1 1/2	1019774	–	0.22
1/2	2	1019775	1019784	0.34
5/8	3 1/4	1019793	1019800	0.67
3/4	4 3/4	1019819	1019828	1.14
7/8	6 1/2	1019837	1019846	1.74
1	8 1/2	1019855	1019864	2.52
1 1/8	9 1/2	1019873	1019882	3.45
1 1/4	12	1019891	1019908	4.90
1 3/8	13 1/2	1019917	1019926	6.24
1 1/2	17	1019935	1019944	8.39
1 3/4	25	1019953	1019962	14.2
2	35	1019971	1019980	21.2
2 1/2	55	1019999	1010004	38.6
3	85	1020013	–	56
