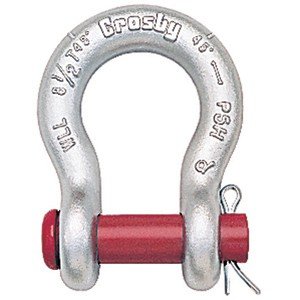

G2130 - Bolt Type Anchor Shackles

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

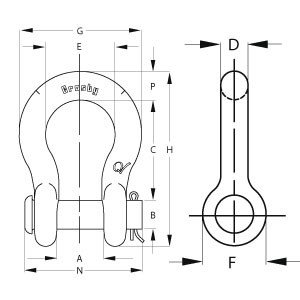

Dimensions and Weights

Norminal Size [Inches]	Dimensions [mm]									Tolerance +/-
Norminal Size [Inches]	A	B	C	D	E	F	H	L	N	C	A
3/16	9.65	6.35	22.4	4.85	15.2	14.2	37.3	24.9	4.85	1.50	1.50
1/4	11.9	7.85	28.7	6.35	19.8	15.5	46.7	32.5	6.35	1.50	1.50
5/16	13.5	9.65	31.0	7.85	21.3	19.1	53.0	37.3	7.85	3.30	1.50
3/8	16.8	11.2	36.6	9.65	26.2	23.1	63.0	45.2	9.65	3.30	1.50
7/16	19.1	12.7	42.9	11.2	29.5	26.9	74.0	51.5	11.2	3.30	1.50
1/12	20.6	16.0	47.8	12.7	33.3	30.2	83.5	58.5	12.7	3.30	1.50
5/8	26.9	19.1	60.5	16.0	42.9	38.1	106	74.5	17.5	6.35	1.50
3/4	31.8	22.4	71.5	19.1	51.0	46.0	126	89.0	20.6	6.35	1.50
7/8	36.6	25.4	84.0	22.4	58.0	53.0	148	102	24.6	6.35	1.50
1	42.9	28.7	95.5	25.4	68.5	60.5	167	119	26.9	6.35	1.50
1 1/8	46.0	31.8	108	28.7	74.0	68.5	190	131	31.8	6.35	1.50
1 1/4	51.5	35.1	119	31.8	82.5	76.0	210	146	35.1	6.35	1.50
1 3/8	57.0	38.1	133	35.1	92.0	84.0	233	162	38.1	6.35	3.30
1 1/2	60.5	41.4	146	38.1	98.5	92.0	254	175	41.1	6.35	3.30
1 3/4	73.0	51.0	178	44.5	127	106	313	225	57.0	6.35	3.30
2	82.5	57.0	197	51.0	146	122	348	253	61.0	6.35	3.30
2 1/2	105	70.0	267	66.5	184	145	453	327	79.9	6.35	6.35
3	127	82.5	330	76.0	200	165	546	365	92.0	6.35	6.35
3 1/2	133	95.5	372	92.0	229	203	626	419	105	6.35	6.35
4	140	108	368	104	254	229	653	468	116	6.35	6.35

Norminal Size [Inches]	Working Load Limit [Tonnes]	Stock No.		Weight [kgs]
Norminal Size [Inches]	Working Load Limit [Tonnes]	G2130	S2130	Weight [kgs]
3/16	1/3	1019464	–	0.03
1/4	1/2	1019466	–	0.05
5/16	3/4	1019468	–	0.10
3/8	1	1019470	–	0.15
7/16	1 1/2	1019471	–	0.22
1/12	2	1019472	1019481	0.36
5/8	3 1/4	1019490	1019506	0.62
3/4	4 3/4	1019515	1019524	1.23
7/8	6 1/2	1019533	1019542	1.79
1	8 1/2	1019551	1019560	2.28
1 1/8	9 1/2	1019579	1019588	3.75
1 1/4	12	1019597	1019604	5.31
1 3/8	13 1/2	1019613	1019622	7.18
1 1/2	17	1019631	1019640	9.43
1 3/4	25	1019659	1019668	15.4
2	35	1019677	1019686	23.7
2 1/2	55	1019695	1019702	44.6
3	85	1019711	–	70
3 1/2	120	1019739	–	120
4	150	1019757	–	153
