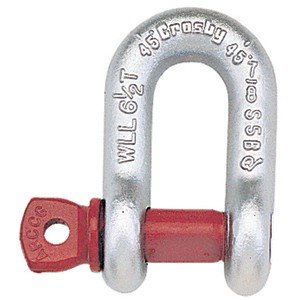

G210 - Screw Pin Chain Shackles - Astro Wire Rope

G210 - Screw Pin Chain Shackles

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

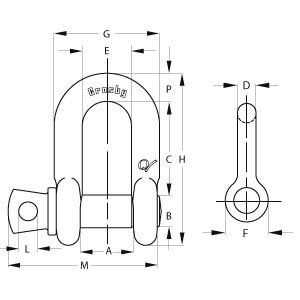

Dimensions and Weights

Norminal Size [Inches]	Dimensions [mm]										Tolerance +/-
Norminal Size [Inches]	A	B	C	D	E	F	G	K	L	M	A	A
1/4	11.9	7.85	6.35	6.35	24.6	15.5	22.4	40.4	4.85	35.1	1.50	1.50
5/16	13.5	9.65	7.85	7.85	29.5	19.1	26.2	48.5	5.60	42.2	1.50	1.50
3/8	16.8	11.2	9.65	9.65	35.8	23.1	31.8	58.5	6.35	51.5	3.30	1.50
7/16	19.1	12.7	11.2	11.2	41.4	26.9	36.6	67.5	7.85	60.5	3.30	1.50
1/2	20.6	15.7	12.7	12.7	46.0	30.2	41.4	77.0	9.65	68.5	3.30	1.50
5/8	26.9	20.6	15.7	16.0	58.5	38.1	51.0	95.5	11.2	85.0	3.30	1.50
3/4	31.8	24.6	20.6	19.1	70.0	46.0	60.5	115	12.7	101	6.35	1.50
7/8	36.6	25.4	24.6	22.4	81.0	53.0	71.5	135	12.7	114	6.35	1.50
1	42.9	28.7	25.4	25.4	93.5	60.5	81.0	151	14.2	129	6.35	1.50
1 1/8	46.0	31.8	31.8	28.7	103	68.5	91.0	172	16.0	142	6.35	1.50
1 1/4	51.5	35.1	35.1	31.8	115	76.0	100	191	17.5	156	6.35	3.30
1 3/8	57.0	38.1	38.1	35.1	127	84.0	111	210	19.1	174	6.35	3.30
1 1/2	60.5	41.4	41.1	38.1	137	92.0	122	230	20.6	187	6.35	3.30
1 3/4	73.0	51.0	54.0	44.5	162	103	146	279	25.4	231	6.35	3.30
2	82.5	57.0	60.0	51.0	184	122	172	312	31.0	263	6.35	3.30
2 1/2	105	70.0	66.5	66.5	238	145	203	377	35.1	330	6.35	6.35

Norminal Size [Inches]	Working Load Limit [Tonnes]	Stock No.		Weight [kgs]
Norminal Size [Inches]	Working Load Limit [Tonnes]	G210	S210	Weight [kgs]
1/4	1/2	1019150	1019169	0.05
5/16	3/4	1019178	1019187	0.08
3/8	1	1019196	1019203	0.13
7/16	1 1/2	1019212	1019221	0.20
1/2	2	1019230	1019249	0.32
5/8	3 1/4	1019258	1019267	0.57
3/4	4 3/4	1019276	1019285	1.20
7/8	6 1/2	1019294	1019301	1.43
1	8 1/2	1019310	1019329	2.15
1 1/8	9 1/2	1019338	1019347	3.06
1 1/4	12	1019356	1019365	4.11
1 3/8	13 1/2	1019374	1019383	5.28
1 1/2	17	1019392	1019409	7.23
1 3/4	25	1019418	1019427	12.1
2	35	1019436	1019445	19.2
2 1/2	55	1019454	1019463	32.5
