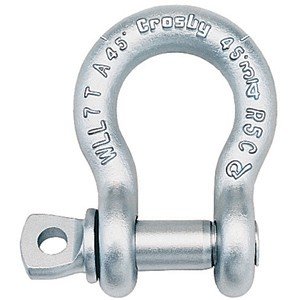

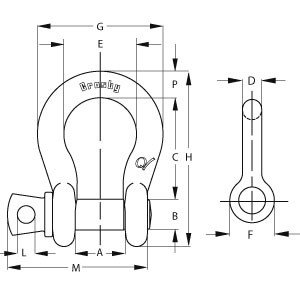

| Norminal Size [Inches] | Dimensions [mm] | Tolerance +/- | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | L | M | P | C | A | |
| 3/8 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63.5 | 6.35 | 51.5 | 9.65 | 3.30 | 1.50 |
| 7/16 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.5 | 74.0 | 7.85 | 60.5 | 11.2 | 3.30 | 1.50 |
| 1/2 | 20.6 | 16.0 | 47.8 | 12.7 | 23.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.7 | 3.30 | 1.50 |
| 5/8 | 26.9 | 19.0 | 60.5 | 16.0 | 42.9 | 38.1 | 74.5 | 106 | 11.2 | 85.0 | 17.5 | 3.30 | 1.50 |
| 3/8 | 31.8 | 22.4 | 71.5 | 19.1 | 51.0 | 46.0 | 89.0 | 126 | 12.7 | 101 | 20.6 | 6.35 | 1.50 |
| 7/8 | 36.6 | 25.4 | 84.0 | 22.4 | 58.0 | 53.0 | 102 | 148 | 12.7 | 114 | 24.6 | 6.35 | 1.50 |
| 1 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 119 | 167 | 14.2 | 129 | 26.9 | 6.35 | 1.50 |
| 1 1/8 | 46.0 | 31.8 | 108 | 29.5 | 74.0 | 68.5 | 131 | 190 | 16.0 | 142 | 31.8 | 6.35 | 1.50 |
| 1 1/4 | 51.5 | 35.1 | 119 | 32.8 | 82.8 | 76.0 | 146 | 210 | 17.5 | 156 | 35.1 | 6.35 | 1.50 |
| 1 3/8 | 57.0 | 38.1 | 133 | 36.1 | 92.0 | 84.0 | 162 | 233 | 19.1 | 174 | 38.1 | 6.35 | 3.30 |
| Norminal Size [Inches] | Working Load Limit [Tonnes] | Stock No. | Weight [kgs] |
|---|---|---|---|
| G209A | |||
| 3/8 | 2 | 1017450 | 0.14 |
| 7/16 | 2 2/3 | 1017472 | 0.17 |
| 1/2 | 3 1/3 | 1017494 | 0.29 |
| 5/8 | 5 | 1017516 | 0.63 |
| 3/8 | 7 | 1017538 | 1.02 |
| 7/8 | 9 1/2 | 1017560 | 1.53 |
| 1 | 12 1/2 | 1017582 | 2.41 |
| 1 1/8 | 15 | 1017604 | 3.09 |
| 1 1/4 | 18 | 1017626 | 4.31 |
| 1 3/8 | 21 | 1017648 | 6.01 |
