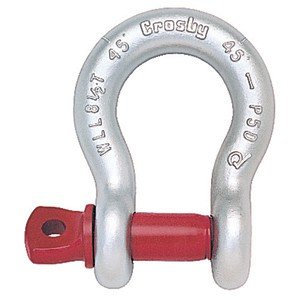

G209 - Screw Pin Anchor Shackles

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

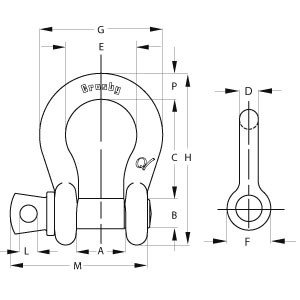

Dimensions and Weights

Norminal Size [Inches]	Dimensions [mm]											Tolerance +/-
Norminal Size [Inches]	A	B	C	D	E	F	G	H	L	M	P	C	A
3/16	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85	1.50	1.50
1/4	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35	1.50	1.50
5/16	13.5	9.65	31.0	7.85	21.3	19.1	37.3	53.0	5.60	42.2	7.85	3.30	1.50
3/8	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63.0	6.35	51.5	9.65	3.30	1.50
7/16	19.1	12.7	42.9	11.2	29.5	26.9	51.5	74.0	7.85	60.5	11.2	3.30	1.50
1/12	20.6	16.0	47.8	12.7	33.3	30.2	58.5	83.5	9.65	68.5	12.7	3.30	1.50
5/8	26.9	19.1	60.5	16.0	42.9	38.1	74.5	106	11.2	85.0	17.5	6.35	1.50
3/4	31.8	22.4	71.5	19.1	51.0	46.0	89.0	126	12.7	101	20.6	6.35	1.50
7/8	36.6	25.4	84.0	22.4	58.0	53.0	102	148	12.7	114	24.6	6.35	1.50
1	42.9	28.7	95.5	25.4	68.5	60.5	119	167	14.2	129	26.9	6.35	1.50
1 1/8	46.0	31.8	1.8	29.5	74.0	68.5	131	190	16.0	142	37.8	6.35	1.50
1 1/4	51.5	35.1	119	32.8	82.5	76.0	146	210	17.5	156	35.1	6.35	1.50
1 3/8	57.0	38.1	133	36.1	92.0	84.0	162	233	19.1	174	38.1	6.35	3.30
1 1/2	60.5	41.4	146	39.1	98.5	92.0	175	254	20.6	187	41.1	6.35	3.30
1 3/4	73.0	51.0	178	46.7	127	106	225	313	25.4	231	57.0	6.35	3.30
2	82.5	57.0	197	53.0	146	122	253	348	31.0	263	61.0	6.35	3.30
2 1/2	105	70.0	267	69.0	184	145	327	453	35.1	330	79.5	6.35	6.35

Norminal Size [Inches]	Working Load Limit [Tonnes]	Stock No.		Weight [kgs]
Norminal Size [Inches]	Working Load Limit [Tonnes]	G209	S209	Weight [kgs]
3/16	1/3	1018357	–	0.03
1/4	1/2	1018375	1018384	0.05
5/16	3/4	1018393	1018400	0.09
3/8	1	1018419	1018428	0.14
7/16	1 1/2	1018437	1018446	0.17
1/12	2	1018455	1018464	0.33
5/8	3 1/4	1018473	1018482	0.62
3/4	4 3/4	1018491	1018507	1.07
7/8	6 1/2	1018516	1018525	1.64
1	8 1/2	1018534	1018543	2.28
1 1/8	9 1/2	1018552	1018561	3.36
1 1/4	12	1018570	1018589	4.31
1 3/8	13 1/2	1018598	1018605	6.14
1 1/2	17	1018614	1018623	7.80
1 3/4	25	1018632	1018641	12.6
2	35	1018650	1018669	20.4
2 1/2	55	1018678	1018687	38.9
