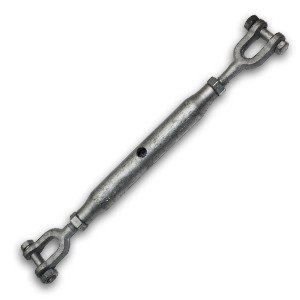

Galvanised Rigging Screw Jaw/Jaw Tested & Certified

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

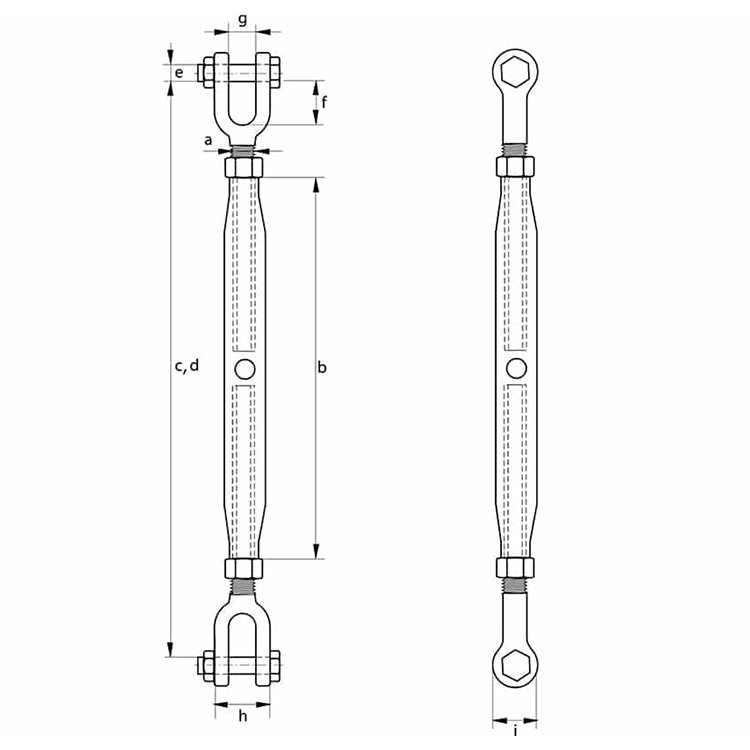

Dimensions and Weights

WLL Tonnes	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	I mm	J mm	Weight kgs/each	Part Code
0.20	6	100	170	250	5	16	7	20	13	6	0.15	WRW0211
0.32	8	108	199	279	6	22	9	24	14	8	0.26	WRW0212
0.50	10	125	222	312	8	22	10.5	28	19	8	0.45	WRW0201
0.70	12	195	315	470	10	27	13	34	23	10	0.85	WRW0202
1.20	16	230	388	568	12	33	18	42	29	11	1.51	WRW0203
1.50	20	270	449	654	16	38	20	51	33	12	2.62	WRW0204
2.20	22	295	490	715	20	45	25	55	38	12	3.94	WRW0205
3.20	24	325	538	793	22	52	30	70	46	12	5.16	WRW0206
4.80	33	370	680	965	30	70	38	82	60	14	11.6	WRW0207
6.00	39	400	707	1002	33	70	45	85	76	15	14.2	WRW0208
