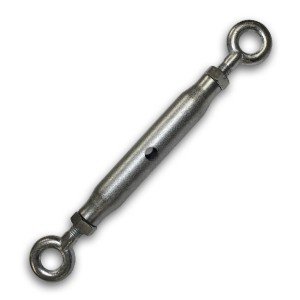

Galvanised Rigging Screw Eye/Eye Tested & Certified

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

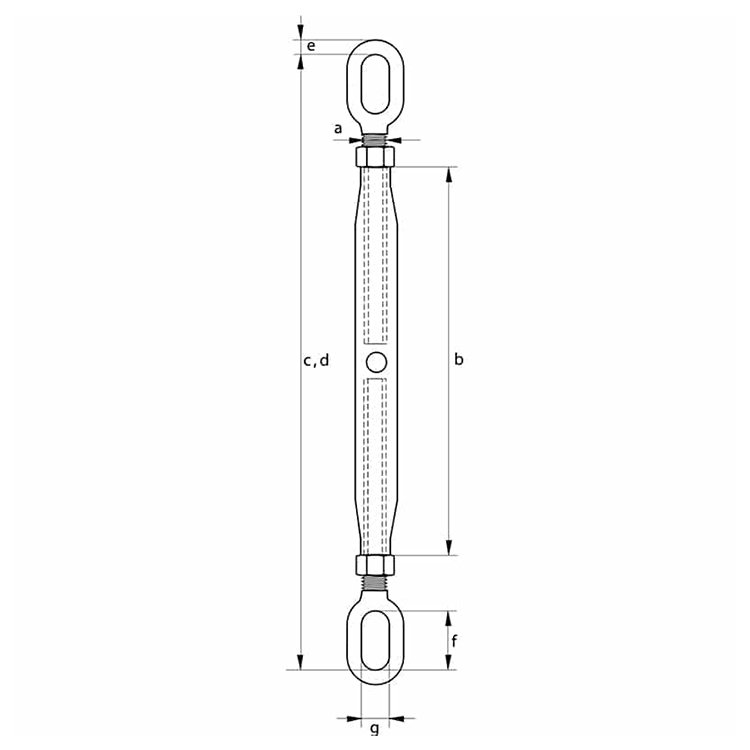

Dimensions and Weights

WLL Tonnes	Size A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	Weight kgs/each	Part Code
0.20	6	100	160	240	5.5	11	11	6	0.12	WRW0111
0.32	8	108	175	255	6	12	12	8	0.19	WRW0112
0.50	10	125	205	300	8.5	13	13	8	0.34	WRW0101
0.70	12	195	320	480	11	30	15	10	0.77	WRW0102
1.20	16	230	380	555	12	40	20	11	1.31	WRW0103
1.50	20	270	455	660	16	50	24	12	2.36	WRW0104
2.20	22	295	495	720	16	50	24	12	2.94	WRW0105
3.20	24	325	540	790	19	56	28	12	3.86	WRW0106
4.80	33	370	660	940	29	70	35	14	8.95	WRW0107
6.00	39	400	720	1020	35	80	40	15	11.0	WRW0108
