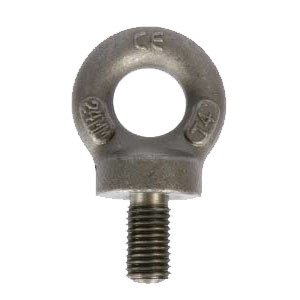

Self-Colour Drop Forged Collared Eyebolts (Metric Thread)

Galvanised Fittings

Eyebolts and Eye Nuts

Ferrules and End Stops

Hooks

Rigging Screws

Shackles

Sockets

Thimbles

Turnbuckles

Wire Rope Grips

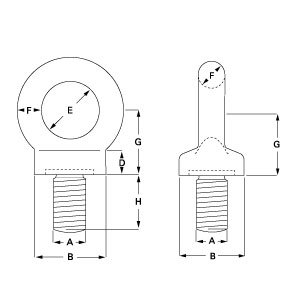

Dimensions and Weights

Vertical SWL Tones	A mm	B mm	D mm	E mm	F mm	G mm	H mm	Weight kgs/each	Part Code
0.15	8	22	7	15	9	20	18	0.06	WRL0300
0.25	10	22	7	15	9	20	18	0.06	WRL0301
0.40	12	22	7	15	9	20	18	0.06	WRL0302
0.50	14	29	10	20	12	26	23	0.15	WRL0303
0.80	16	29	10	20	12	26	23	0.15	WRL0304
1.0	18	36	12	24	14	32	28	0.27	WRL0305
1.60	20	40	14	27	16	36	32	0.38	WRL0306
1.60	22	45	15	30	18	40	35	0.54	WRL0307
2.50	24	52	17	35	21	46	40	0.85	WRL0308
2.50	27	58	20	39	23	52	46	1.13	WRL0309
4.00	30	65	22	44	26	58	51	1.62	WRL0310
4.00	33	72	24	48	28	64	56	2.37	WRL0311
6.30	36	81	27	54	32	72	63	3.12	WRL0312
