Aluminium Ferrules

General Engineering Ropes

All our aluminium ferrules are compliant with DIN EN 13411-3 and are appropriate for rope slings compliant with DIN EN 13414-1.

If the dimensions of the components are critical to your project, then please confirm with one of our sales team.

Splicing Chart

Rope Diameter Ø in mm			Single Layer Round Strand Ropes			Spiral Strands (2 Ferrules)
Nominal	Measured		Fibre Core & Cable Laid Ropes	IWRC & Rotation-Resistant		Spiral Strands (2 Ferrules)
Diameter	Min	Max	C ≥ 0.283	C ≤ 0.487	0.487 < C ≤ 0.613	C ≤ 0.613
2.5	2.5	2.7	2.5	3	–	–
3	2.8	3.2	3	3.5	–	–
3.5	3.3	3.7	3.5	4	–	–
4	3.8	4.3	4	4.5	–	5
4.5	4.4	4.8	4.5	5	–	6
5	4.9	5.4	5	6	–	6.5
6	5.5	6.4	6	6.5	7	7
6.5	6.5	6.9	6.5	7	8	8
7	7.0	7.4	7	8	9	9
8	7.5	8.4	8	9	9-10	10
9	8.5	9.5	9	10	10-11	11
10	9.6	10.5	10	11	11-12	12
11	10.6	11.6	11	12	12-13	13
12	11.7	12.6	12	13	13-14	14
13	12.7	13.7	13	14	14-16	16
14	13.8	14.7	14	16	16-18	18
16	14.8	16.8	16	18	18-20	20
18	16.9	18.9	18	20	20-22	22
20	19.0	21.0	20	22	22-24	24
22	21.1	23.1	22	24	24-26	26
24	23.2	25.2	24	26	26-28	28
26	25.3	27.3	26	28	28-30	30
28	27.4	29.4	28	30	30-32	32
30	29.5	31.5	30	32	32-34	34
32	31.6	33.6	32	34	34-36	36
34	33.7	35.7	34	36	36-38	38
36	35.8	37.8	36	38	38-40	40
38	37.9	39.9	38	40	40-44	44
40	40.0	42	40	44	48	48
44	42.1	46.2	44	48	48-52	48
48	46.3	50.4	48	52	52-56	52
52	50.5	54.6	52	56	56-60	60
56	54.7	58.8	56	60	–	–
60	58.9	63.0	60	–	–	–

Aluminium Ferrules Outside of EURONORM

Ferrule No.	Rope Diameter Ø in mm				Swaging Die No.	Pressed Ferrule Diameter Ø in mm
	Fibre Core		Steel Core
	Min	Max	Min	Max
1	0.9	1	0.5	0.8	1	2
1.5	1.1	1.5	0.9	1.1	1.5	3
2	1.6	2	1.2	1.6	2	4

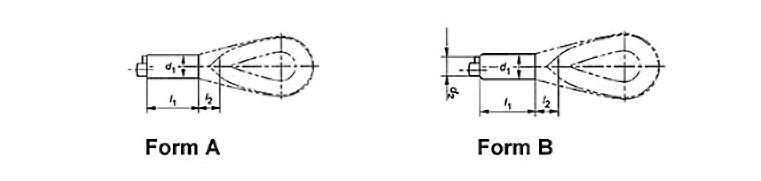

Pressed Ferrule Dimensions
